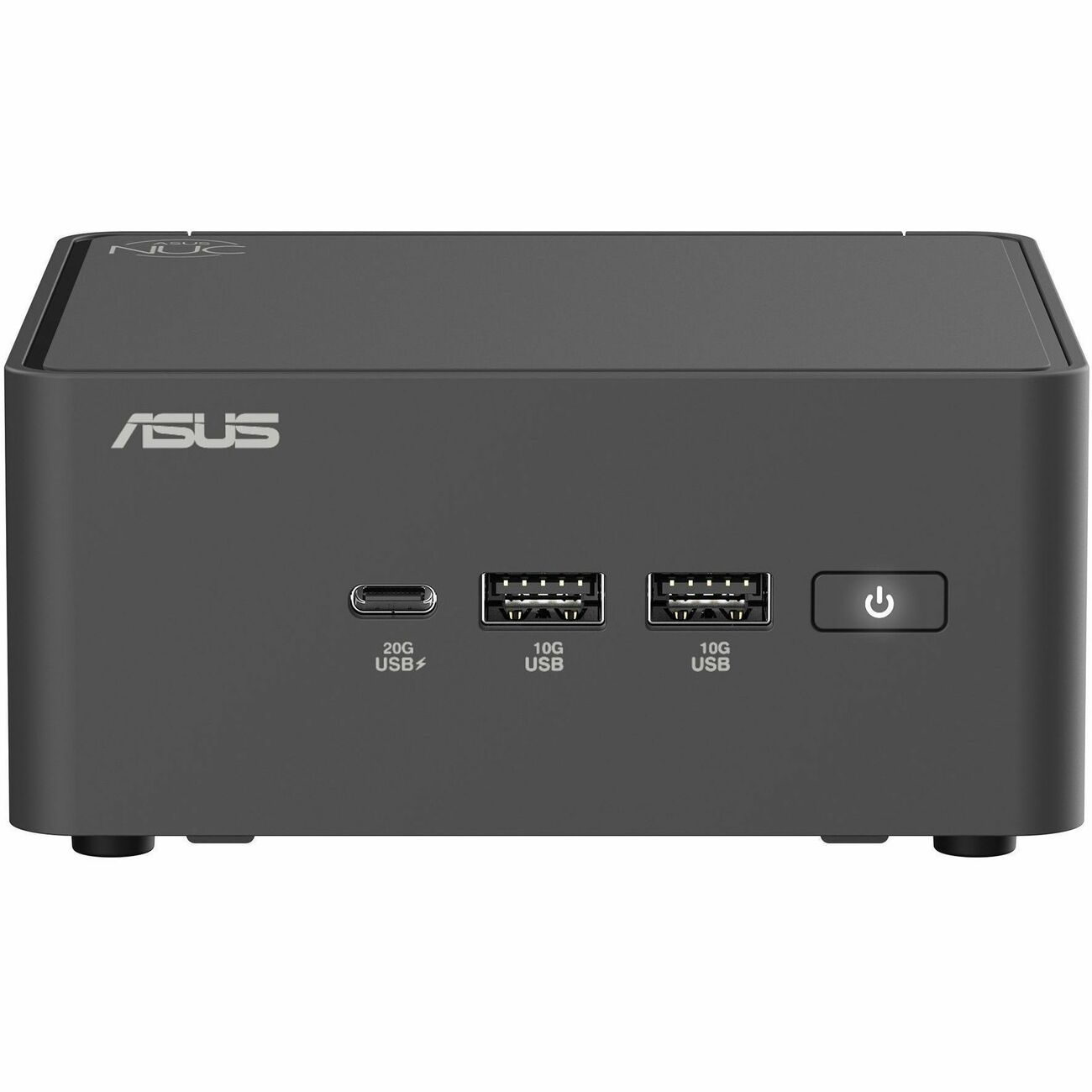

Asus NUC 15 Pro NUC15CRHI3 Barebone System - Mini PC - Intel Core 3 100U - Intel Chip - 96 GB DDR5 SDRAM DDR5-5600/PC5-44800 Maximum RAM Support - 2 Total Memory Slots - NVMe Controller - Intel - IEEE 802.11be - Bluetooth 5.4 - Network (RJ-45) - 2 M.2 Interface(s) - 2.5 Gigabit Ethernet - Windows 11 Pro, Ubuntu 24.04 LTS x64, Red Hat Enterprise Linux x64 Supported Operating System - 90 W
Main Features
| Processor Manufacturer: | Intel |
| Processor Type: | Core 3 |
| Processor Model: | 100U |
| 64-bit Processing: | Yes |
| Chipset Manufacturer: | Intel |
| Maximum Memory Supported: | 96 GB |
| Memory Technology: | DDR5 SDRAM |
| Memory Standard: | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots: | 2 |
| Supported Storage Drive Interfaces: | PCI Express NVMe 4.0 x4 |
| Supported Storage Drive Types: | SSD |
| Controller Type: | NVMe |
| Graphics Controller Manufacturer: | Intel |
| Graphics Memory Technology: | DDR5 SDRAM |
| Graphics Memory Accessibility: | Shared |
| Ethernet Technology: | 2.5 Gigabit Ethernet |
| Wireless LAN: | Yes |
| Wireless LAN Standard: | IEEE 802.11be |
| Bluetooth: | Yes |
| Bluetooth Standard: | Bluetooth 5.4 |
| Number of M.2 Interfaces: | 2 |
| HDMI (Rear): | Yes |
| Total Number of USB Ports: | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports: | 3 |
| USB Type-C (Front): | Yes |
| USB Type-C Detail: | 1 x USB 3.2 Gen2x2 Type-C |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| Number of Thunderbolt 4 Ports: | 2 |
| Operating System Supported: | - Windows 11 Pro
- Ubuntu 24.04 LTS x64
- Red Hat Enterprise Linux x64
|
| Plug/Connector Type: | C5 |
| Maximum Power Supply Wattage: | 90 W |
| Color Family: | Black |
| Product Color: | Black |
| Form Factor: | Mini PC |
| Height: | 2.13" (54 mm) |
| Width: | 4.61" (117 mm) |
| Depth: | 4.41" (112 mm) |
| Weight (Approximate): | 12.85 oz (364.30 g) |
| Package Contents: | - NUC 15 Pro NUC15CRHI3 Barebone System
- AC Adapter
|
| Application/Usage: | - POS System
- Kiosk
- Digital Signage
|
| Energy Star: | Yes |
| Environmental Compliance: | - Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
|
Marketing information
Supports up to 96GB dual-channel DDR5-6400 memory for seamless multitasking and high-speed workloads.Features Intel Arc Graphics for AI acceleration and stunning visual performance, with Intel vPro for enterprise-grade security and management. Includes PCIe Gen5 NVMe SSD and Gen4 expansion slots for ultra-fast storage and flexibility. Connects up to four 4K displays via dual HDMI 2.1 and Thunderbolt 4 with DisplayPort 2.1 and USB4 compatibility.
General Information
| Manufacturer: | ASUS Computer International |
| Manufacturer Part Number: | RNUC15CRHI300001 |
| Manufacturer Website Address: | http://www.asus.com/ca-en/ |
| Brand Name: | Asus |
| Product Line: | NUC 15 Pro |
| Product Model: | NUC15CRHI3 |
| Product Name: | NUC 15 Pro NUC15CRHI3 Barebone System |
| Marketing Information: | Supports up to 96GB dual-channel DDR5-6400 memory for seamless multitasking and high-speed workloads.Features Intel Arc Graphics for AI acceleration and stunning visual performance, with Intel vPro for enterprise-grade security and management. Includes PCIe Gen5 NVMe SSD and Gen4 expansion slots for ultra-fast storage and flexibility. Connects up to four 4K displays via dual HDMI 2.1 and Thunderbolt 4 with DisplayPort 2.1 and USB4 compatibility. |
| Packaged Quantity: | 1 / Each |
| Product Type: | Barebone System |
Processor
| Processor Manufacturer: | Intel |
| Processor Type: | Core 3 |
| Processor Model: | 100U |
| 64-bit Processing: | Yes |
Chipset
| Chipset Manufacturer: | Intel |
Memory
| Maximum Memory Supported: | 96 GB |
| Memory Technology: | DDR5 SDRAM |
| Memory Standard: | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots: | 2 |
Storage
| Supported Storage Drive Interfaces: | PCI Express NVMe 4.0 x4 |
| Supported Storage Drive Types: | SSD |
Controllers
Display & Graphics
| Graphics Controller Manufacturer: | Intel |
| Graphics Memory Technology: | DDR5 SDRAM |
| Graphics Memory Accessibility: | Shared |
Network & Communication
| Ethernet Technology: | 2.5 Gigabit Ethernet |
| Wireless LAN: | Yes |
| Wireless LAN Standard: | IEEE 802.11be |
| Bluetooth: | Yes |
| Bluetooth Standard: | Bluetooth 5.4 |
I/O Expansions
| Number of M.2 Interfaces: | 2 |
Interfaces/Ports
| HDMI (Rear): | Yes |
| Total Number of USB Ports: | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports: | 3 |
| USB Type-C (Front): | Yes |
| USB Type-C Detail: | 1 x USB 3.2 Gen2x2 Type-C |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| Number of Thunderbolt 4 Ports: | 2 |
Operating System
| Operating System Supported: | - Windows 11 Pro
- Ubuntu 24.04 LTS x64
- Red Hat Enterprise Linux x64
|
Power Description
| Plug/Connector Type: | C5 |
| Maximum Power Supply Wattage: | 90 W |
Physical Characteristics
| Color Family: | Black |
| Product Color: | Black |
| Form Factor: | Mini PC |
| Height: | 2.13" (54 mm) |
| Width: | 4.61" (117 mm) |
| Depth: | 4.41" (112 mm) |
| Weight (Approximate): | 12.85 oz (364.30 g) |
Miscellaneous
| Package Contents: | - NUC 15 Pro NUC15CRHI3 Barebone System
- AC Adapter
|
| Application/Usage: | - POS System
- Kiosk
- Digital Signage
|
| Energy Star: | Yes |
| Environmental Compliance: | - Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
|
